358 High Security Fence

XLF － 06

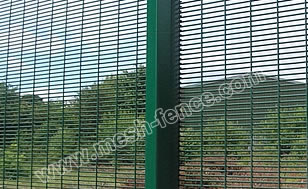

358 High Security Fence Description

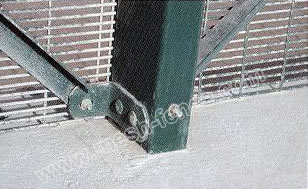

The wire fence is composed with quadrate post and high strength welded wire fence; has a strong erosion resistance and anti-ultraviolet; connected by screw flat bar, the installation is very easy and convenient.

Application:

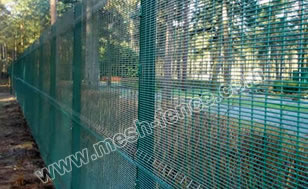

Power station, commonality construction, jail, airport, military base, country border and other high security area and place. Extra choose the angle steel, barbed wire or razor wire fence to make more security.




High Anti-Corrosion:

Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.

Surface Treatment Min. Max.
Electric Gal. 20/m2 60g/m2
Hot dipped Gal. 35g/m2 700g/m2
Powders Sprayed coating 100 microns 120 microns

Design Advantage:

The design of anti-cutting has a strong body, can reduce the destroy and anti-climbing.

Popular Specification:

Wire Diameter Mesh Size Width Height Post Height Post Type Fitting
3.0mm
3.5mm
4.0mm		 1/2"*3"
(12.7*76.2mm)		 2000mm
2200mm
2500mm		 1000mm
1200mm
1500mm
1800mm
2000mm
2200mm
2400mm
3000mm		 1400mm
1600mm
2000mm
2300mm
2500mm
2800mm
3000mm
3800mm		 Model
No.XLFP-04		 Flat Plate

Choice of colors:

Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available
