Gabion Box

XLS － 03
What is Gabion Box?

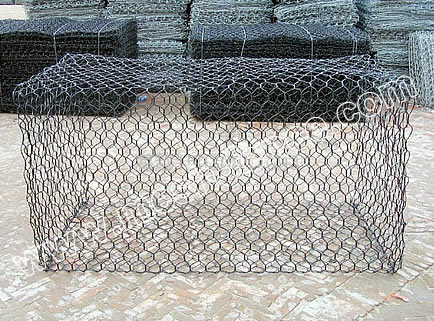

Gabion Cages(Boxes) are made of hexagonal galvanized/pvc/zinc coated double-twised mild steel wire mesh.

Gabion boxes shall be supplied in various lengths, widths and heights. In order to strengthen the boxes, all the edges of the structure shall be selvedged with wire of bigger diameter.



Rockfall Mesh

Rock-fall protection netting

Rock fall netting is a steel woven hexagonal opening wire netting which is used to prevent rocks and debris form falling onto roads, railways and other structures. The mesh is made of heavily zinc coated or PVC+Heavily Zinc coated double twisted steel woven wire. Due to the characteristics of double twist, the steel wire netting can withstand the force of falling rocks without unraveling in the event of wire breakage.

River Gabion Mattresses

Gabion mattress can be made of hexagonal double-twisted mild steel wire mesh. Mattresses can be supplied in various length, widths and height. The tolerances of mattress' dimensions are ±5% in height. In order to strengthen the mattresses, all the edges of the mattress are selvedged with a wire of greater diameter.

The river mattress is a structure made of hexagonal double twisted wire mesh. Rive mattresses are filled with stones at the project site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control.

Sur face treatment of gabion mattress: The woven steel wire used to manufacture the mattress is heavily zinc-coated soft temper steel.




Uses of Gabions

Strengthening the stability of the river beds
Protecting riverbeds from being washed away

Providing the prefixed value of coarseness modulus of river banks

Protecting the trees and zoology of slopes and banks.




Configuration characteristic:

1. Great Perviousness: keep the hillside and the seaside steady.

2. Great Pliability: No connection aperture and to be provided with tractility.

3. Great Anti-corrosion: The heavy galvanized surface and PVC/PE coated are able to against the corrosion strongly.

4. Resist the scour: to be suitable for seaside and slope defend project.

5. Holistic capability: The cages are perfect to others, it doesn't leave the aperture when constructed in the huge quantity.

6. Easy to Construct: Don't need water, concrete with moulding board, no need electric power also.

7. Application Better: easy to pack and load. It could be packed according to the design requests. SUch as according to the shape of Hillside, Shore & bench, and Dike.

8. Economical: use local stone, not need any concrete.

9. Keep entironment: the stone should be filled with soil finally(contrived or natural).

The plant can grow in it. So it could keep the water and soil very well, and beautify the entironment.



Surface Treatment Mesh Size Mesh Wire(mm) Selvedge Wire(mm) Lacing Wire(mm)
Heavy Hot dipped galvanized
or golfan galvanized
and PVC coating		 60*80 2.0mm/3.0mm
2.2mm/3.2mm		 2.8mm/3.8mm
3.0mm/4.0mm		 2.8mm/2.umm
2.0mm/3.0mm
80*100
80*120		 2.2mm/3.2mm
2.5mm/3.5mm
2.7mm/3.7mm		 3.omm/4.0mm
3.2mm/4.2mm
3.4mm/4.4mm		 2.2mm/3.2mm
100*120
100*150		 2.2mm/3.2mm
2.5mm/3.5mm
2.7mm/3.7mm		 3.0mm/4.0mm
3.2mm/4.2mm
3.4mm/4.4mm		 2.2mm/3.2mm
120*150 2.2mm/3.2mm
2.5mm/3.5mm
2.7mm/3.7mm		 3.0mm/4.0mm
3.2mm/4.2mm
3.4mm/4.4mm		 2.2mm/3.2mm

Surface Treatment Mesh Size Mesh Wire(mm) Selvedge Wire(mm) Lacing Wire(mm)
Heavy Hot dipped galvanized
or golfan galvanized
and PVC coating		 60*80 2.0 - 2.2mm 2.8-3.0mm 1.8-2.0mm
80*100
80*120		 2.0 - 2.7mm 3.0-3.4mm 2.2mm
100*120
100*150		 2.0 - 2.7mm 3.0-3.4mm 2.2mm
120*150 2.0 - 2.7mm 3.0-3.4mm 2.2mm

Size Notes The tolerance
Length(m) Width(m) Height(m) Unit   Length ± 3%
Width ± 5%
Height ± 5%
2.00 1.00 0.30 1 0.60
3.00 1.00 0.30 2 0.90
4.00 1.00 0.30 3 1.20
2.00 1.00 0.50 1 1.00
3.00 1.00 0.50 2 1.50
4.00 1.00 0.50 3 2.00
1.00 1.00 1.00 0 1.00
1.50 1.00 1.00 0 1.50
2.00 1.00 1.00 1 2.00
3.00 1.00 1.00 2 3.00
4.00 1.00 1.00 3 4.00
