Metal Wires

XLS － 05
Metal Wires
We can produce hot dipped galvanized wire, electric galvanized iron wire, black annealed wire, pvc coated wire, straight cutting wire and u type wire.

Hot dipped Galvanized & Electric Galvanized Wire



Galvanized wire is made of high quality iron wire, can be divided into electric galvanized and hot dipped galvanized iron wire. Galvanized wire is mainly used in weaving wire mesh, expressway fencing making and tie wire for construction etc.

Hot dipped galvanized wire and Electro galvanized wire
Metric System British System
5.0mm ~ 0.3mm BWG 6 - BWG 30
Tensile strength: 35 ~70 kg/mm2
Zinc coating; Electro Galvanized: 10~25g/m2
Hot dipped Galvanized: 30~366g/m2(0.10-1.2oz)

Wires: Galvanized iron wire, black iron wire, PVC coated wire, the cutting wire used in construction, stainless steel wire.

Uses: Used in weaving mesh, construction, etc..



Black Annealed Wire

The types of products: black annealed iron wire, soft light annealed iron wire.

The standard size: BWG5 ~ BWG24

T/S: About 350 MPa

Packing: inside polyethylene film, outside PVC woven or hessian cloth.



PVC Coated Wire

PVC Coated Wire
Core Diameter Outside Diameter
0.6mm ~ 4.0mm 0.9mm ~ 5.0mm
BWG 23-8 BWG 20 ~ 7
Note: PVC Coating, the lowest thickness: 0.4mm
Tensile strength: 30-55kg/mm2
Colour: Green, blue, yellow, orange, black and so on.
Packing: inside polyethylene film, outside PVC woven or hessian cloth

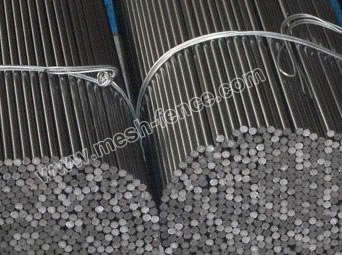

Straight Cutting Wire

Straight Cutting Wire
Wire Diameter Length
0.6-0.8mm 450mm
600mm
According to customer's requirements.
0.8-1.2mm
1.45-1.8mm
2.0-3.2mm
3.5-6.0mm



U Tie Wire

Specification Surface Shape Packing
Dia. Length
2.0mm~5.0mm 250mm~3000mm Black U Tie Wire and Galvanized U Tie Wire Normal Shape and Special Shape By cartons or as users' requests
0.7mm~1.2mm 250mm~750mm
