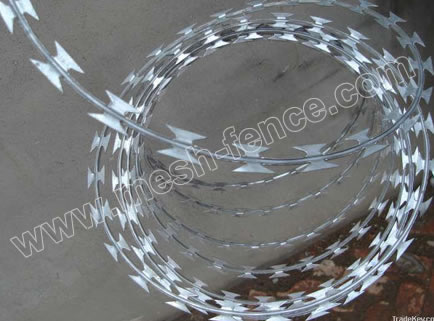

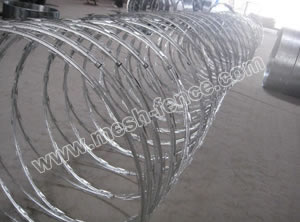

Razor Barbed Wire

XLF － 12
Razor Barbed Wire - High Security Protecting:
- Concertina Barbed Tape(CBT); Barbed Tape Obstacle(BTO)
- Standard materials are either hot dipped galvanized or stainless steel.

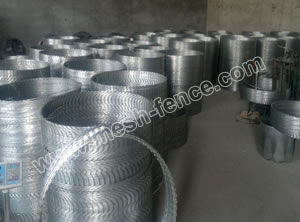

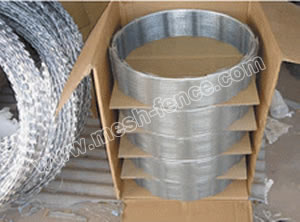

- Standard packages products are shown in the pictures, special specifications available on request.





Standard production type

Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8m CBT-60.65 Single coil
500mm 56 12-13m CBT-60.65 Single coil
700mm 56 13-14m CBT-60.65 Single coil
960mm 56 14-15m CBT-60.65 Single coil
450mm 56 8-9m BTO-12.22.25.30 Cross type
500mm 56 9-10m BTO-12.22.25.30 Cross type
600mm 56 10-11m BTO-12.22.25.30 Cross type
600mm 56 8-10m BTO-12.22.25.30 Cross type
700mm 56 10-12m BTO-12.22.25.30 Cross type
800mm 56 11-13m BTO-12.22.25.30 Cross type
900mm 56 12-14m BTO-12.22.25.30 Cross type
960mm 56 13-15m BTO-12.22.25.30 Cross type
980mm 56 14-16m BTO-12.22.25.30 Cross type

Reference Number Blade Style Thickness(mm) Wire Dia (mm) Barb
Length (mm)		 Barb
Width(mm) 		Barb
spacing (mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30 18 45±1
BTO-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2
